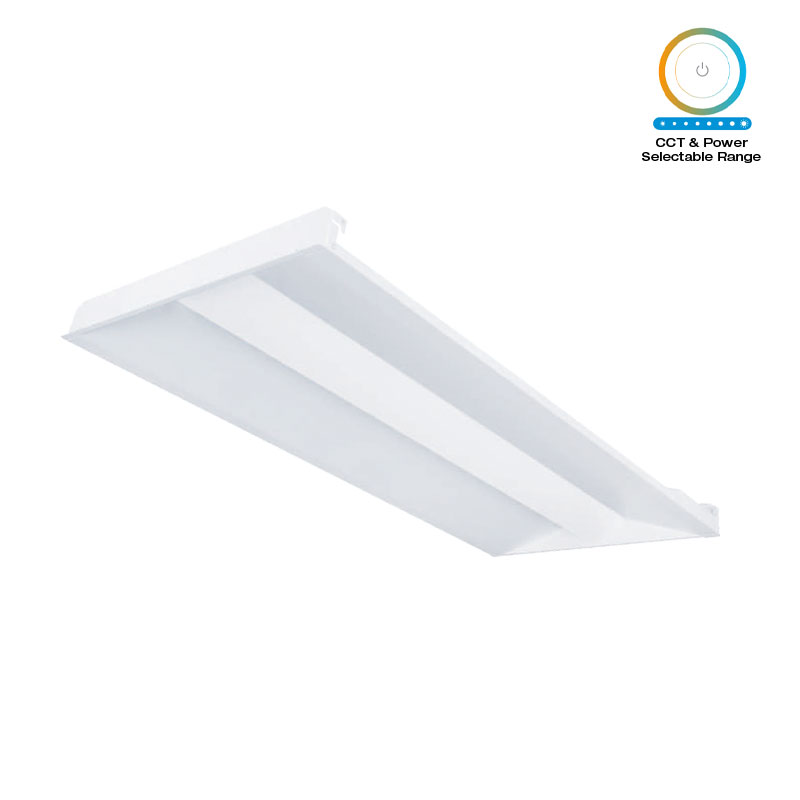

Delphi Architectural Troffer 2'x4'
CCT & Power Selectable

Delphi Architectural Troffer, apart from being an energy efficient lighting solution, also offers excellent lighting control to its users by allowing them to select different CCTs and Power to meet their varied requirements. This Troffer is available in two different sizes (2' x 2', 2' x 4'), each with a variety of highly efficient lumen packages to suit multiple lighting needs.


• CCT & Power Selectable.
• Soft, smooth and uniform light output.
• Suitable for a wide range of applications due to its low profile.
• Metal surfaces are painted pre-fabrication with high gloss baked silver matte powder paint for a long-lasting finish.

Product Details
Efficacy (lm/W) 128 lm/W
Power (W) 25 W-30 W-35 W
CCT (K) 3500 K-4000 K- 5000 K
CRI 82
Voltage AC 1200-277 V 50/60 Hz
Beam Angle 114.4°
Dimming Continuous Dimming to 10% or below (0-10V)
Operating Temperature -4° F to +122° F
IP Rating IP20
Housing Galvanized Steel Plate
Technical Resources
Product Sheet
Installation Instructions
LM80 Report
SKU Details
Power SKU Number CCT Efficacy Voltage Lumen Output Size Finish Qualified part number Ordering part number Technical Data Sheet IES File
25 W-30 W-35 W 662187477312 3500 K-4000 K-5000 K 128 lm/W 120-277 V 3350 lm-3840 lm-4500 lm 2x4 White IK-AT24F-253035-CCT-D IK-AT24F-253035-CCT-D Download Download
