Visiolit Back-Lit Panel Light
CCT & Power Selectable

Step into a space lit by Visiolit and you immediately sense the difference. Soft, balanced illumination removes the harsh glare that strains eyes and dulls concentration, replacing it with a calm clarity that helps people work and learn more effectively. Colors appear truer, tasks feel easier, and rooms feel welcoming and energizing all day. With built-in adaptability and smart options, Visiolit quietly creates an environment where focus deepens, comfort lasts, and productivity rises.

PRODUCT FEATURES

  • UGR-Friendly Optics with rosted back-lit diffuser controls glare, supporting visual comfort and sustained focus.
  • Selectable Output with adjustable power and three-color temperatures in one fixture reduce SKUs and simplify planning.
  • Compatible with motion and daylight sensors for energy-efficient control.
  • Emergency Backup Option that keeps light on during outages for safety and continuity.
  • Certified Performance as it offers DLC/UL approved with long service life and warranty assurance.
Product Details
Efficacy (lm/W) 125lm/W
Power Selectable (W) 1'x4': 20W-30W-40W
2'x2': 20W-30W-40W
2'x4': 30W-40W-50W
CCT (K) 3500K-4000K-5000K
CRI 82
Voltage 120 – 277V
Beam Angle 115°
Dimming Continuous Dimming to 10% or below
Operating Temperature -40°F ~ + 122°F
Housing Steel sheet and extruded Aluminum
Technical Resources
SKU Details
Size MAX Power SKU Number Efficacy CCT Voltage Lumen Output Beam angle Ordering Part Number Qualified Product Code Technical Data Sheet IES File

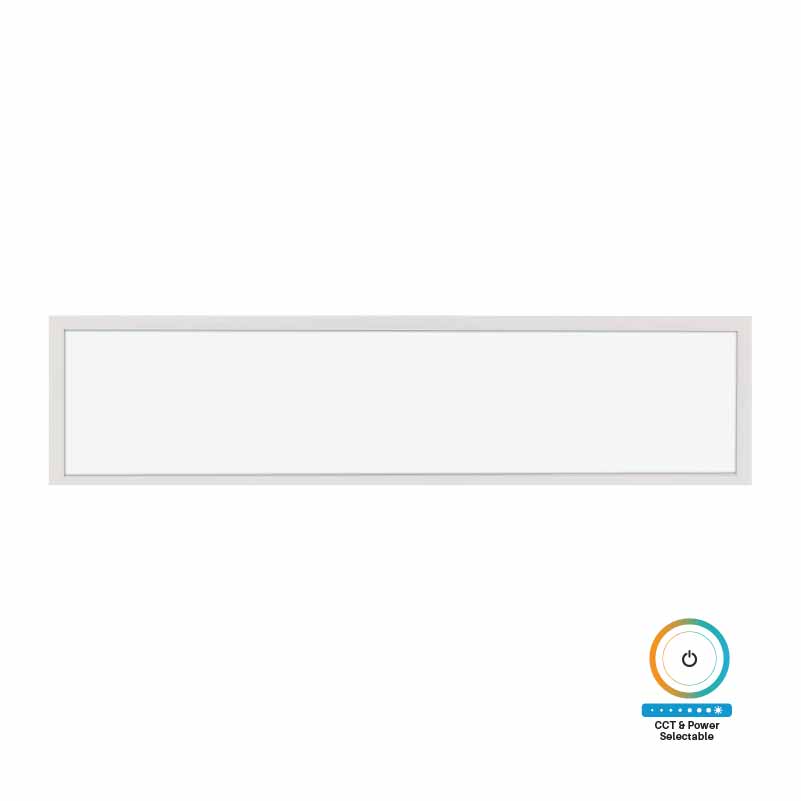

1'x4' 39.32W 662187512600 125lm/W 3500K-4000K-5000K 120-277V 2517.8lm-3776.7lm-5000lm 115° IK-BL14- 20W/30W/40W- 35/40/50K IK-BL14- 20W/30W/40W- 35/40/50K Download Download

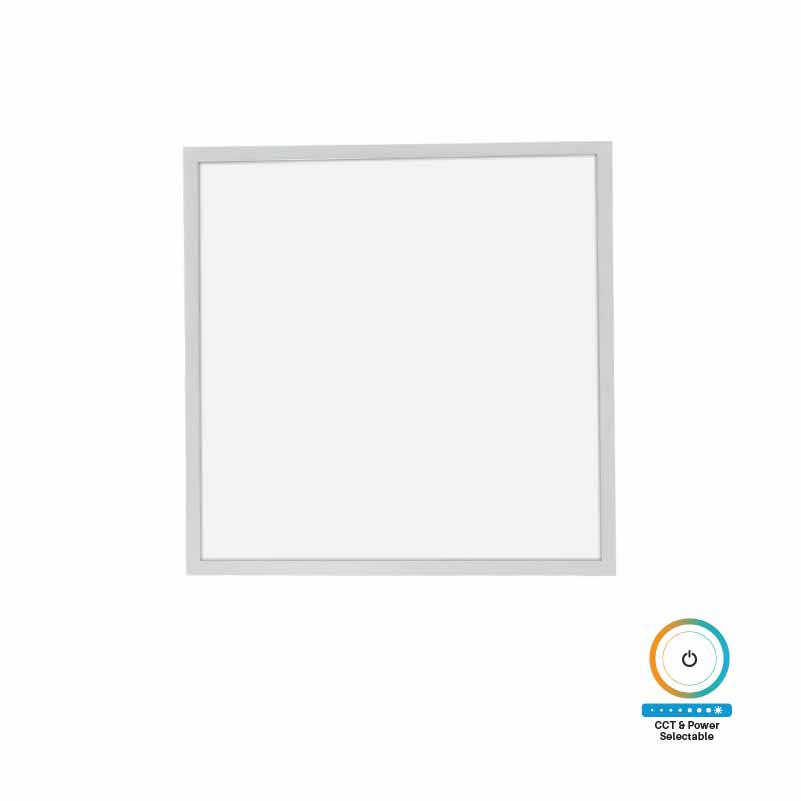

2'x2' 39.32W 662187512617 125lm/W 3500K-4000K-5000K 120-277V 2517.8lm-3776.7lm-5000lm 115° IK-BL22-20W/30W/40W-35/40/50K IK-BL22-20W/30W/40W-35/40/50K Download Download

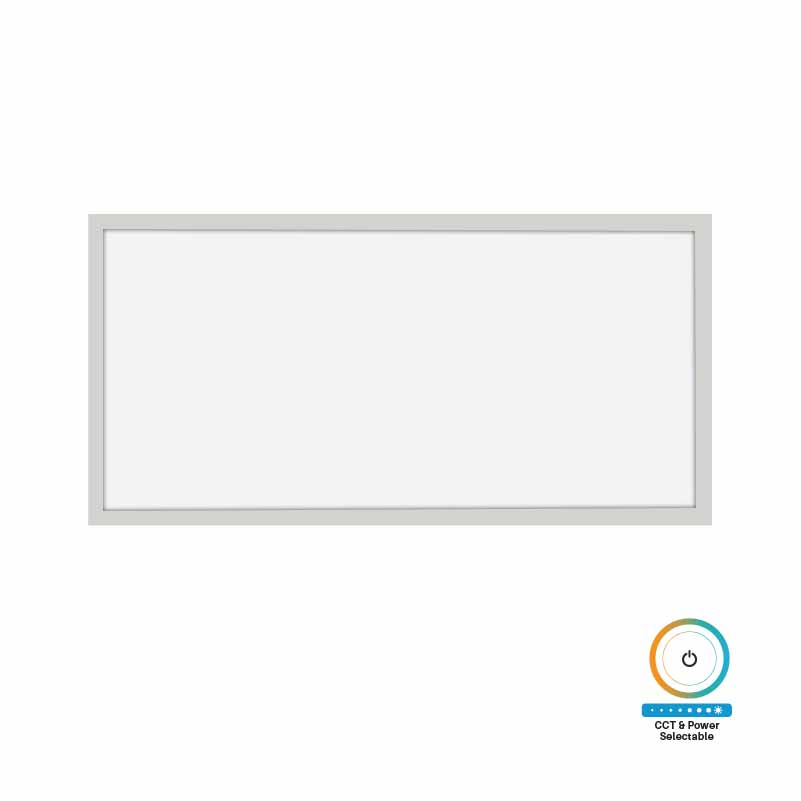

2'x4' 48.9W 662187512624 125lm/W 3500K-4000K-5000K 120-277V 3776.7lm-5000lm-6371lm 115° IK-BL24-30W/40W/50W-35/40/50K IK-BL24-30W/40W/50W-35/40/50K Download Download
