Amplin
Linear High Bay

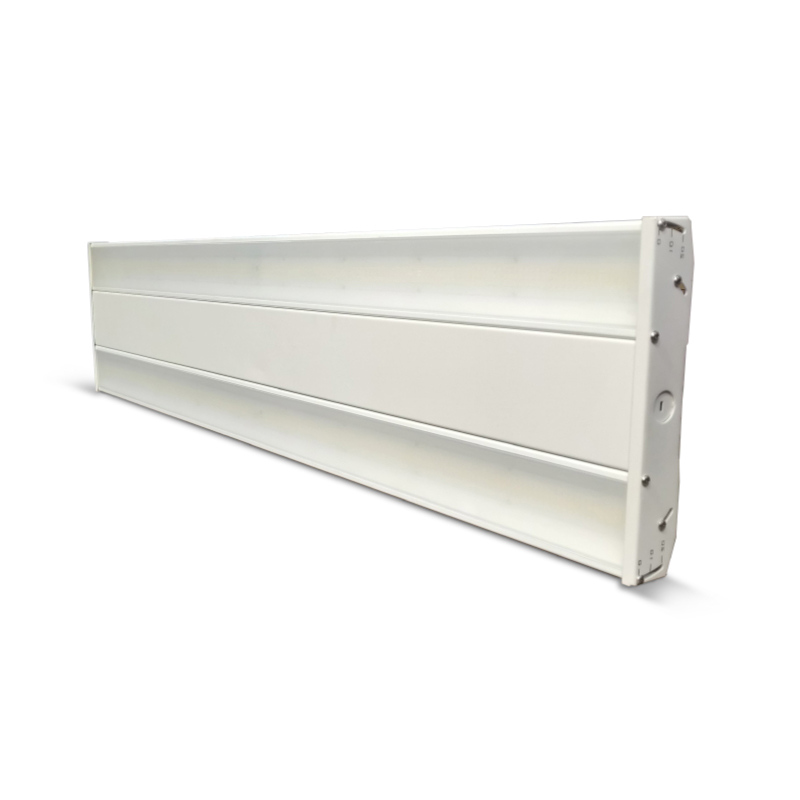

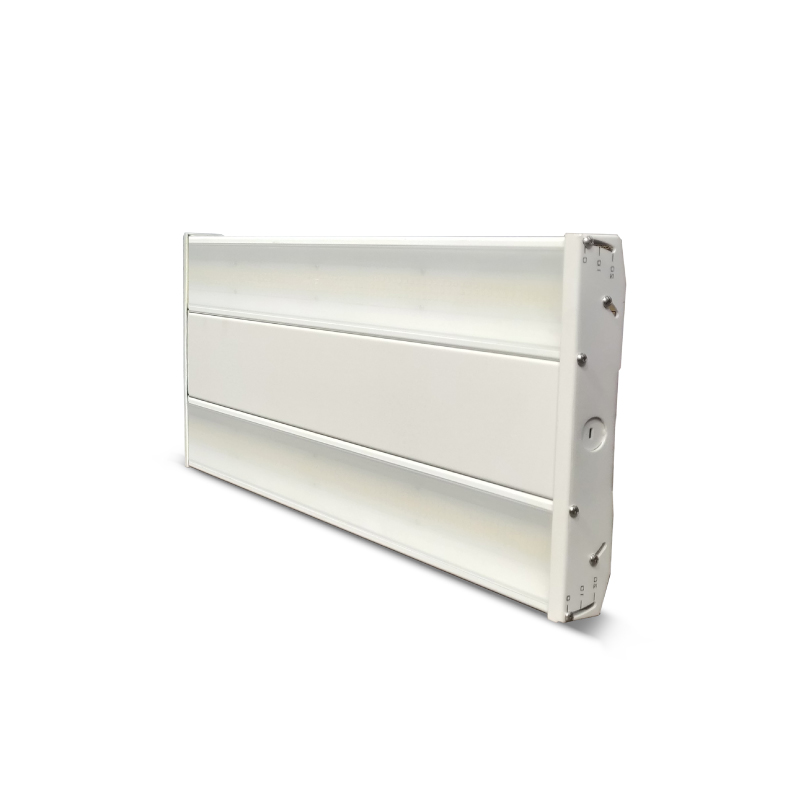

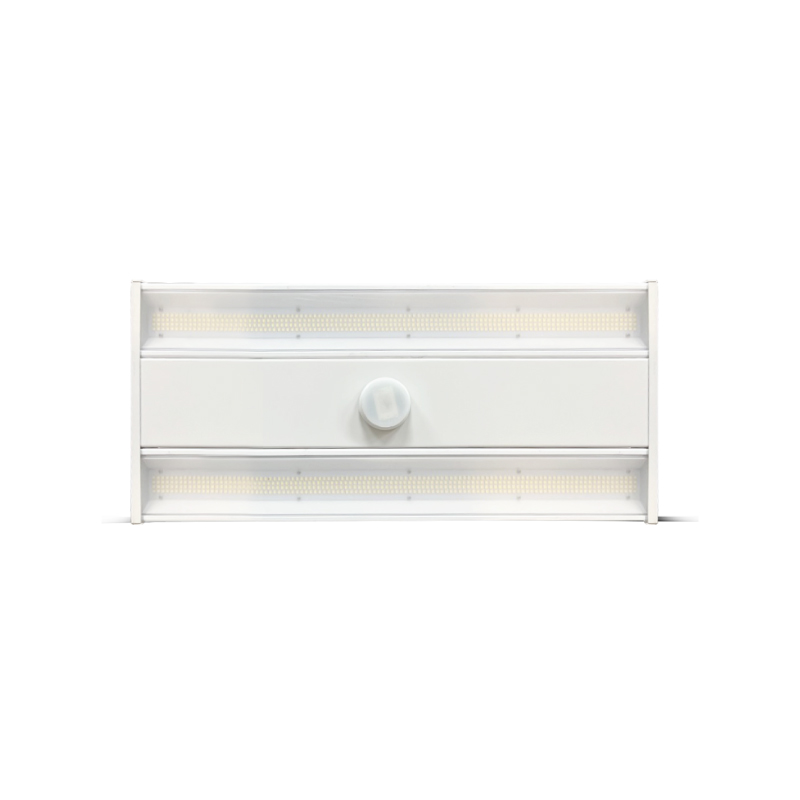

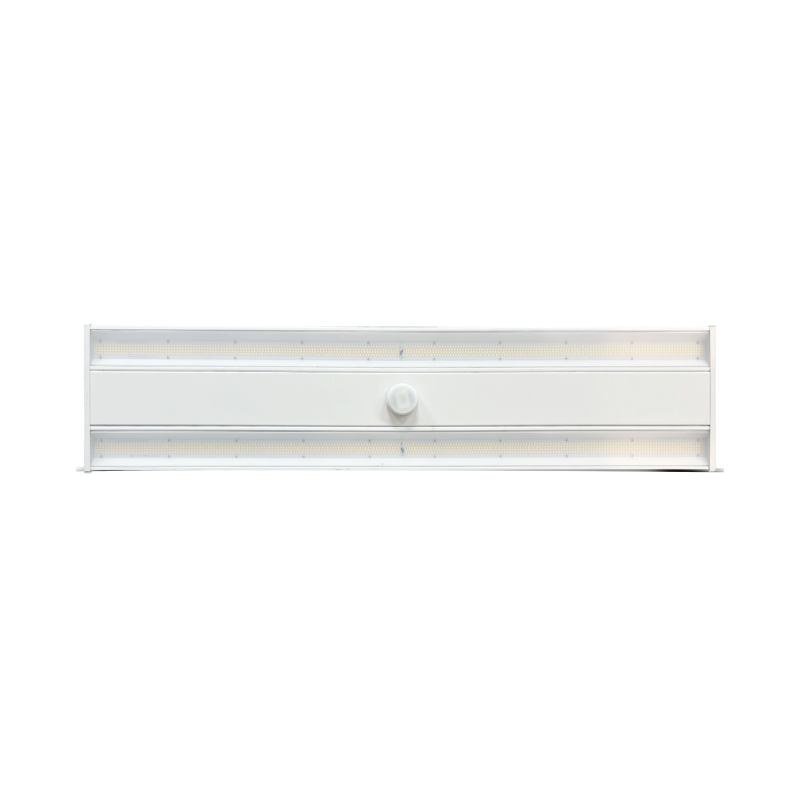

The IKIO Amplin Linear High Bay is designed for a variety of applications and mounting heights. Wide-angle optics, multiple lumen packages and color temperatures make it ideal for industrial, commercial, manufacturing, gymnasium and other applications, that utilize traditional linear fluorescent and HID fixtures. Suggested mounting heights are between 15 – 25 feet. This high bay reduces up to 70% of the energy usage and has a life span of over 10 years. This fixture is available in a frosted or clear lens.
PRODUCT FEATURES
- 75,000 hours of life time.
- Superior heat dissipation capability due to use of multiple heat sinks.
- Smooth and uniform light output with no flickering or humming.
- Sleek design and Low-profile makes it suitable for a wide range of applications.
- Savings of up to 75% over conventional fluorescent fixtures.
- Resistant to vibration and water.
Product Details
| Efficacy (lm/W) | 150 lm/W |
| Power (W) | 75 W, 100 W, 150 W, 200 W, 240 W, 300 W |
| CCT (K) | 3000 K, 3500 K, 4000 K, 4500 K, 5000 K, 5700 K |
| CRI | 80+ |
| Voltage | AC 100-277 V 50/60 Hz (also 277-480v, 346-480v Fixtures available) |
| Beam Angle | 120° |
| Dimming | Yes |
| Operating Temperature | -10° F to +120° F |
| IP Rating | IP 40 |
| Housing | Aluminum |
Technical Resources
Product Sheet
LM79 Reports
Installation Instructions
SKU Details
| Power | SKU Number | CCT | Voltage | Lumen Output | Qualified part number | Ordering part number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|
| 75 W | 662187544366 | 4000 K | AC 100-277 V | 11250 lm | Not Qualified Yet | IK-HBAX-0075-40-DY-RLV02 | Download | Download |
| 75 W | 662187544380 | 5000 K | AC 100-277 V | 11250 lm | IK-HBAX-0075-50-DY-RLV02 | IK-HBAX-0075-50-DY-RLV02 | Download | Download |
| 100 W | 662187544434 | 4000 K | AC 100-277 V | 15000 lm | Not Qualified Yet | IK-HBAX-0100-40-DY-RLV02 | Download | Download |
| 100 W | 662187549705 | 5000 K | AC 100-277 V | 15000 lm | IK-HBAX-0100-50-DY-RLV02 | IK-HBAX-0100-50-DY-RLV02 | Download | Download |
| 150 W | 662187544496 | 4000 K | AC 100-277 V | 22500 lm | Not Qualified Yet | IK-HBAX-0150-40-DY-RLV02 | Download | Download |
| 150 W | 662187549712 | 5000 K | AC 100-277 V | 22500 lm | IK-HBAX-0150-50-DY-RLV02 | IK-HBAX-0150-50-DY-RLV02 | Download | Download |
| 200 W | 662187544557 | 4000 K | AC 100-277 V | 30000 lm | Not Qualified Yet | IK-HBAX-0200-40-DY-RLV04 | Download | Download |
| 200 W | 662187549729 | 5000 K | AC 100-277 V | 30000 lm | IK-HBAX-0200-50-DY-RLV04 | IK-HBAX-0200-50-DY-RLV04 | Download | Download |
| 240 W | 662187548616 | 4000 K | AC 100-277 V | 36000 lm | Not Qualified Yet | IK-HBAX-0240-40-DY-RLV04 | Download | Download |
| 240 W | 662187544632 | 5000 K | AC 100-277 V | 36000 lm | IK-HBAX-0240-50-DY-RLV04 | IK-HBAX-0240-50-DY-RLV04 | Download | Download |
| 300 W | 662187544670 | 4000 K | AC 100-277 V | 45000 lm | Not Qualified Yet | IK-HBAX-0300-40-DY-RLV04 | Download | Download |
| 300 W | 662187549736 | 5000 K | AC 100-277 V | 45000 lm | IK-HBAX-0300-50-DY-RLV04 | IK-HBAX-0300-50-DY-RLV04 | Download | Download |
| 400 W | 662187461359 | 4000 K | AC 100-277 V | 60000 lm | Not Qualified Yet | IK-HBAX-0400-40-DY-RLV04 | Download | Download |
| 400 W | 662187548289 | 5000 K | AC 100-277 V | 60000 lm | Not Qualified Yet | IK-HBAX-0400-50-DY-RLV04 | Download | Download |
