Superia

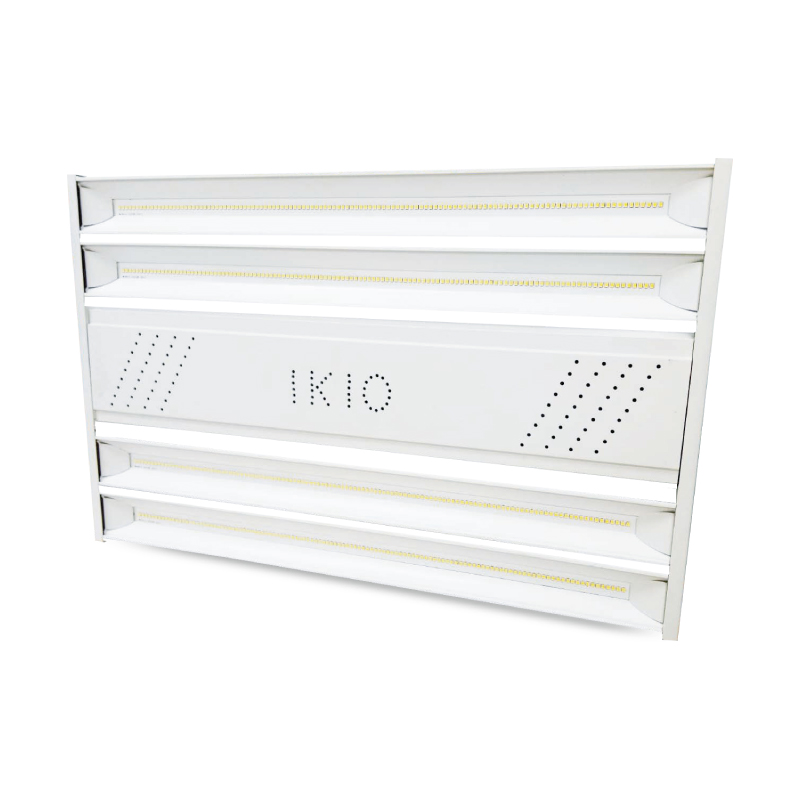

Linear High Bay
The IKIO Superia Linear High Bay is designed for a variety of applications and mounting heights. Wide-angle optics, multiple lumen packages, and color temperatures make this lamp ideal for industrial, commercial, manufacturing, gymnasium, and applications that utilize traditional linear fluorescent and HID fixtures. Suggested mounting heights are between 15 – 35 feet. This high bay reduces up to 70% of the energy usage and has a life span of over 10 years. This fixture is available in a frosted or clear lens.
PRODUCT FEATURES
- Exceptional efficacy (200 lm/W).
- 100,000 hours of life time.
- Superior heat dissipation capability due to use of multiple heat sinks.
- Smooth and uniform light output with no flickering or humming.
- Sleek design and Low-profile makes it suitable for a wide range of applications.
- Savings of up to 75% over conventional fluorescent fixtures.
- Resistant to vibration and water.
Product Details
| Efficacy (lm/W) | 200 lm/W |
| Power (W) | 60 W, 100 W, 200 W |
| CCT (K) | 5000 K |
| CRI | 80+ |
| Voltage | AC 100-277 V 50/60 Hz |
| Beam Angle | 120° |
| Dimming | Yes |
| Operating Temperature | Over 100,000 hours lifetime at L70 |
| IP Rating | IP20 |
| Housing | Aluminum + Polycarbonate (Diffuser) |
Technical Resources
Product Sheet
Installation Instructions
SKU Details
| Power | SKU Number | CCT | Voltage | Lumen Output | Beam Angle | Finish | Diffuser | Qualified part number | Ordering part number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60 W | 662187553375 | 5000 K | AC 100-277 V | 10800 lm | 120° | White | Clear | Not Qualified Yet | IK-HBPX-L200-0060-DY-50 HE (Type A 2') | Download | Download |
| 100 W | 662187559483 | 5000 K | AC 100-277 V | 18000 lm | 120° | White | Clear | Not Qualified Yet | IK-HBPX-L200-0100-DY-50 HE (Type A 2') | Download | Download |
| 200 W | 662187560618 | 5000 K | AC 100-277 V | 36000 lm | 120° | White | Clear | Not Qualified Yet | IK-HBPX-L200-0200-DY-50 (Type B) | Download | Download |
| 60 W | 662187475462 | 5000 K | AC 100-277 V | 10800 lm | 120° | White | Frosted | Not Qualified Yet | IK-HBPX-L200-0060-XX | Download | Download |
| 100 W | 662187475479 | 5000 K | AC 100-277 V | 18000 lm | 120° | White | Frosted | Not Qualified Yet | IK-HBPX-L200-0100-XX | Download | Download |
| 200 W | 662187475486 | 5000 K | AC 100-277 V | 36000 lm | 120° | White | Frosted | Not Qualified Yet | IK-HBPX-L200-0200-XX | Download | Download |
